We are a leading Ultrasound repair and service company. We provide excellent service & repair so you minimize disruptions to your workflow and extending the life of tools your love.

Systems

Thumbnail
Product Title
Description
The GE Voluson S10 is a high-end and full-featured ultrasound system designed for general radiography use and specialized for OB/GYN with particular features for realtime 3D/4D acquisition. The GE Voluson S10 is developed based on Voluson S series platform; however, it has migrated design and technologies from Voluson E series. Due to the new release, the GE Voluson S10 does not support various transducers like GE Voluson E6 or E8. In terms of features, the GE Voluson S10 has been integrated similar options, especially for 3D/4D applications and user inferface — 23″ LCD monitor, GE Voluson family looking control panel, and 10.1″ colorful touchscreen. The body design of Voluson S10 is similar to Voluson S series. Transducers are connected by a micro-connector like Voluson S series. The GE Voluson S10 is also designed to cover Fetal/OB, abdominal, pediatric, small organ, neonatal and adult cephalic, adult and pediatric cardiac, peripheral vascular, MSK, superficial, transrectral, and transvaginal.
  • The GE Voluson S8 is a high-end women’s health 4D ultrasound machine.
  • While the Voluson S8 looks identical to the Voluson S6, and the two systems even use most of the same transducers, the Voluson S8 offers about twice as many channels.
  • This produces a significant advantage in image quality. The Voluson S8 uses the same cost-effective RS transducers as the GE Voluson i portable ultrasound and offers nearly the same imaging quality as the Voluson E8, but at a lower price and with a much smaller and lighter construction.
  • Like other GE Voluson Series ultrasounds, the Voluson S8 is designed for women’s health applications, especially obstetrics, gynecology, and fertility. Secondary applications include general imaging, adult and pediatric cardiology, and neonatal cardiology.
  • The GE Voluson P8 is an entry-level ultrasound system for women’s healthcare applications.
  • Its automated functions allow physicians in busy practices to maintain high-quality imaging while reducing the time needed to conduct, analyze, and report on exams.
  • The consensus of the GE Voluson P8 is an affordable ultrasound for any medical professional who wants to experience the power of a GE Voluson system for clinical applications. Even though the GE Volsuon P8 system is at a lower price point, it supports in-depth imaging features, such as 3D/4D and HDlive.
  • In refurbished condition, Voluson P8 prices range from about $15,000 to $30,000, depending on the condition, age, iteration (BT15/BT16), degree of use, and what transducers come with the system.
  • Bandwidth: 5 – 13 MHz (Logiq e, i), 4 – 12 MHz (Voluson i), 2 – 5 MHz (Voluson S6, S8), 6 – 13 MHz (Vivid i, i n, q, S5)
  • Applications: Vascular (Logiq e, i), Peripheral Vascular (Vivid i, q), Small Parts, Musculoskeletal (Logiq e, i, Voluson S6, S8), Neonatal (Logiq e, i), Pediatrics, Nerve Blocks (Logiq e), Superficial (Logiq e), Thoracic/Pleural (Logiq e), Needle Guidance (Logiq e), Periphero-Vascular (Voluson I, S6, S8), Ortho (Voluson i)
  • Imaging Modes: 2D, SRI, Harmonics, Color Doppler, PW Doppler
  • Footprint: 42 x 7 mm (Logiq i), 12.7 x 47.1 mm (Logiq e), 44 x 10 mm (Voluson i), 47.2 x 13.8 mm (Voluson S6, S8), 14 x 48 mm (Vivid i, q)
  • Compatibility: Logiq book, Logiq book xp, Logiq e, Logiq i, Vivid I squared, Vivid i, Vivid i n, Vivid q, Vivid S5, Voluson e, Voluson I, Voluson S6, Voluson S8

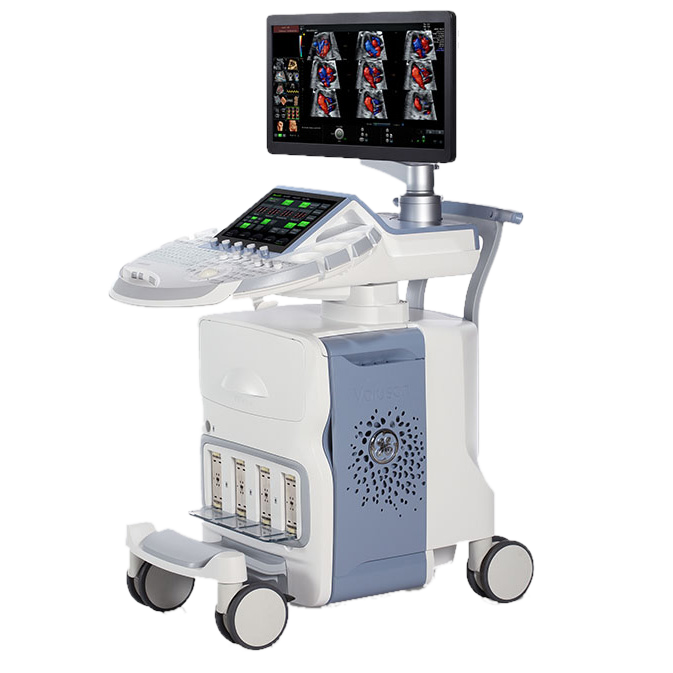

  • The GE Voluson E10 is a premium 4D OB/GYN ultrasound machine. The Voluson E10 supersedes but does not replace the lower-priced GE Voluson E8.
  • The Voluson E10 offers four times the processing power of the Voluson E8, plus a larger screen, more sophisticated beam formation, and newer rendering technologies.
  • The E10’s exceptional processing power and speed mean faster render times and smoother frame rates so that the HD live is crisp and realistic. The Voluson E10 price ranges from $50,000 up to $60,000, on average, depending on the revision (BT), condition, age, amount of use, as well as the probes included.

Probes

Thumbnail
Product Title
Description
The refurbished GE 3Sp-D wideband phased array convex transducer for cardiac, abdominal, neurology and pediatric imaging. It has a frequency range of 1-5 MHz and a 90-degree field of view. You can purchase a fully refurbished GE 3Sp-D phased ultrasound probe from All Imaging Systems in excellent condition. Refurbished GE 3Sp-D Features
  • 1-5 MHz wideband phased array cardiac transducer
  • 90-degree field of view
  • Cardiology, Obstetrics, Abdomen, Neurology, Pediatrics
  • Part Number H48681AZ
  • Bandwidth: 2 – 5.5 MHz, 2 – 5 MHz (Voluson I, S6, S8), 1.8 – 6 MHz (Vivid i, i n, q, S5)
  • Applications: Abdominal, Obstetrics, Gynecology, Vascular (Logiq i), Urology (Logiq e, i), Thoracic/Pleural (Logiq e), Hip (Logiq e), Spine (Logiq e), Bladder (Logiq e), Musculoskeletal (Logiq e)
  • Imaging Modes: 2D, SRI, Harmonics, Color Doppler, PW Doppler
  • Footprint: 65 x 16 mm (Logiq i), 18.3 x 66.2 mm (Logiq e), 61 x 17 mm (Voluson i), 18.3 x 68.7 mm (Voluson S6, S8), 17 x 65 mm (Vivid i, q)
  • Compatibility: Logiq book xp, Logiq book, Logiq e, Logiq i, Vivid I squared, Vivid i, Vivid i n, Vivid q, Vivid S5, Voluson e, Voluson I, Voluson S6, Voluson S8
  • Biopsy Guide: Reusable Bracket, Disposable Sleeve, Multi angle (Logiq e)
Bandwidth: 3.5 – 8 MHz Applications: Pediatric Cardiac, Neonatal Cardiac Imaging Modes: 2D, Harmonics, M-Mode, Color Doppler, PW Doppler, CW Doppler, TVI, Tissue Tracking, TSI Footprint: 15 x 21 mm (Vivid i, q) Compatibility: Vivid i n, Vivid i, Vivid q, Vivid S5
  • Bandwidth: 4 – 11 MHz (Logiq P3, P5, P5 Premium, P6, P6 Pro), 3.5 – 11.5 MHz (Logiq 9, Logiq 7, Logiq S6), 3.7 – 8 MHz (Vivid 7 Pro), 5 – 8 MHz (Vivid 7)
  • Applications: Neonatal, Pediatrics
  • Footprint: 26 x 10 mm (Logiq P5 Premium), 30 x 9 mm (Logiq 9, Logiq 7, Logiq S6), 22 x 12 mm (Logiq P3, P5, P6, P6 Pro)
  • Compatibility: Logiq 400 Pro, Logiq 3 Pro, Logiq 5 Expert, Logiq 5 Pro, Logiq 7, Logiq 7 Dimension, Logiq 9, Logiq P3, Logiq P5, Logiq P5 Premium, Logiq P6, Logiq P6 Pro, Logiq S6, Vivid 7, Vivid 7 Dimension, Vivid 7 Pro
  • Biopsy Guide: None
  • Bandwidth: 4 – 11 MHz (Logiq P5 Premium), 3.4 – 9.9 MHz (Logiq P3, P5, P6, P6 Pro)
  • Applications: Vascular, Small Parts, Abdomen (Logiq P3, P5, P6, P6 Pro)
  • Footprint: 38 x 10 mm (Logiq P5 Premium), 14 x 47 mm (Logiq P3, P5, P6, P6 Pro)
  • Compatibility: Logiq P3, Logiq P5, Logiq P5 Premium, Logiq P6, Logiq P6 Pro
  • Biopsy Guide: Multi angle, Reusable
  • Bandwidth: 3.33 – 10 MHz (Logiq e), 3 – 8 MHz (Voluson i)
  • Applications: Vascular (Logiq e), Small Parts, Musculoskeletal (Logiq e), Obstetrics (Voluson i), Periphero-Vascular (Voluson i), Pediatrics (Voluson i), Ortho (Voluson i)
  • Footprint: 14.1 x 53 mm (Logiq e), 53.1 x 13.8 mm (Voluson i)
  • Compatibility: Logiq e, Voluson i
  • Biopsy Guide: Multi angle (Logiq e), Single angle, biopsy bracket resuable (Voluson i)
4C
  • Bandwidth: 1.4 – 5 MHz (Logiq P5 Premium), 1.5 – 4.5 MHz (Logiq 9, Logiq 7, Logiq S6), 1.6 – 4.6 MHz (Logiq P3, P5, P6 Pro, P6), 1.6 – 5 MHz (Vivid 7 Pro)
  • Applications: Abdomen, Obstetrics, Gynecology, Urology, Vascular
  • Footprint: 60 x 18 mm (Logiq P5 Premium), 61 x 17 mm (Logiq 9, Logiq 7, Logiq S6), 18 x 66 mm (Logiq P3, P5, P6 Pro, P6)
  • Compatibility: Logiq 400 Pro, Logiq 7, Logiq 7 Dimension, Logiq 9, Logiq P3, Logiq P5, Logiq P5 Premium, Logiq P6, Logiq P6 Pro, Logiq S6, Vivid 7 Pro
  • Biopsy Guide: Multi angle, Reusable

Please provide a valid shortcode!

About Our Philosophy

We are a specialized Ultrasound engineering and sales company. We support healthcare providers particularly in regards to their support of Sony, Zonare, HP and General Electric (GE).

Take a tour!

Please visit our facility for your specialized needs. Our technicians really like the challenge.

Get In Touch

sales@allimaging.com

1-949-222-0666

Engineering Services of All Types

System Level Repair

Our team can efficiently repair all your systems. You will receive detailed assessment reports, detailed quotes for repair and detailed test reports with your orders.



Preventative Maintenance Contacts

Our experts have everything you need to service, maintain and repair your Ultrasound equipment. We offer unique contracts that will lower your downtime to less than 24 hours.

Board Level Repair

Our team has decades of experience and can repair boards from a range of vendors. Please contact us so we can address the specifics of your needs.
